caffe 源码学习笔记(2) Layer

Jan 11, 2020 · 7 min read · caffe

layer 整体介绍

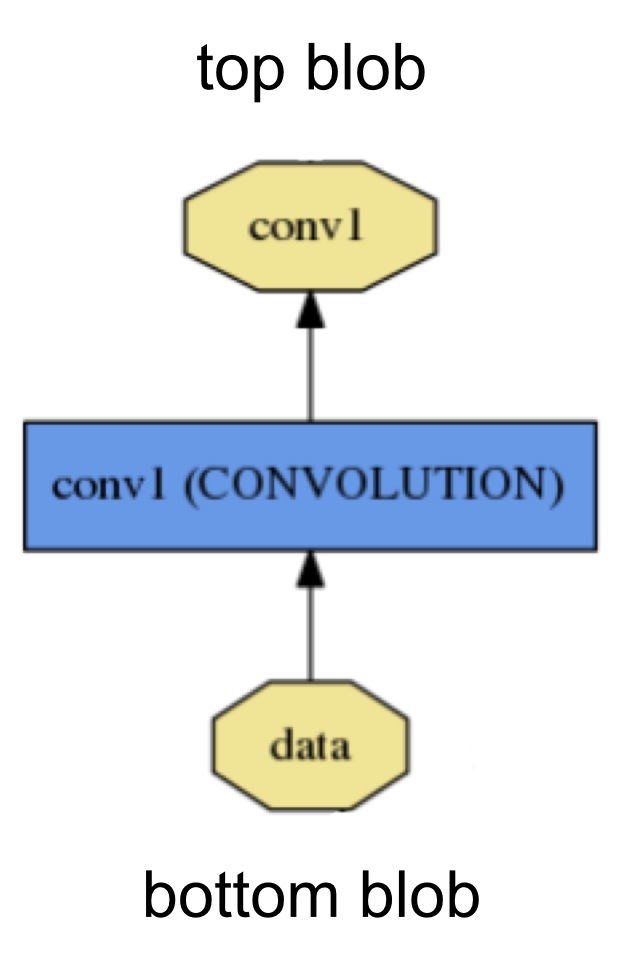

layer是模型计算的基本单元类似于pytorch或者其他深度学习框架的op layer中的数据流向为,输入若干个blob，称之为"bottom blob",然后经过layer的计算，输出若干个blob,称之为"top blob"

也就是数据是从“bottom”流向“top”

layer数据流向

layer通常会进行两种计算，forward和backward

forward是指，根据bottom blob计算得到top blob backward是指，根据top blob的结果和参数值计算得到的gradient,回传给前面的layer.

layer 实现细节

layer作为一个base class,实现了所有layer都需要的common的部分。比如:

 1  /**
 2   * @brief Implements common layer setup functionality.
 3   *
 4   * @param bottom the preshaped input blobs
 5   * @param top
 6   *     the allocated but unshaped output blobs, to be shaped by Reshape
 7   *
 8   * Checks that the number of bottom and top blobs is correct.
 9   * Calls LayerSetUp to do special layer setup for individual layer types,
10   * followed by Reshape to set up sizes of top blobs and internal buffers.
11   * Sets up the loss weight multiplier blobs for any non-zero loss weights.
12   * This method may not be overridden.
13   */
14  void SetUp(const vector<Blob<Dtype>*>& bottom,
15      const vector<Blob<Dtype>*>& top) {
16    CheckBlobCounts(bottom, top);
17    LayerSetUp(bottom, top);
18    Reshape(bottom, top);
19    SetLossWeights(top);
20  }

SetUp可以理解成layer的初始化函数。

这部分代码比较容易看懂，可以说的不多。值得注意的是，下面这段代码:

 1 /** @brief Using the CPU device, compute the layer output. */
 2  virtual void Forward_cpu(const vector<Blob<Dtype>*>& bottom,
 3      const vector<Blob<Dtype>*>& top) = 0;
 4  /**
 5   * @brief Using the GPU device, compute the layer output.
 6   *        Fall back to Forward_cpu() if unavailable.
 7   */
 8  virtual void Forward_gpu(const vector<Blob<Dtype>*>& bottom,
 9      const vector<Blob<Dtype>*>& top) {
10    // LOG(WARNING) << "Using CPU code as backup.";
11    return Forward_cpu(bottom, top);
12  }
13

只有cpu上的forward(backward同理)被定义成纯虚函数，而base class上gpu上的forward被定义调用基类的forward_cpu

这样做使得每个layer必须定义自己的Forward_cpu函数，同时使得某个layer没有自己的Forward_gpu函数时，会fall back到相应的cpu版本。

layer对blob的限制

2020.05.03补充:

看了一些layer的具体实现后,我们发现有一个信息我们是没办法通过proto看出来的. 就是一个layer的输出和输出的blob的个数.

caffe的做法是在layer的基类中定义ExactNumBottomBlobs(), MinTopBlobs() 等. 可以限制bottom blob和top blob的范围或者具体的值. 也可以通过 EqualNumBottomTopBlobs() 来控制bottom和top blob的个数一致.

 1  /**
 2   * @brief Returns the exact number of bottom blobs required by the layer,
 3   *        or -1 if no exact number is required.
 4   *
 5   * This method should be overridden to return a non-negative value if your
 6   * layer expects some exact number of bottom blobs.
 7   */
 8  virtual inline int ExactNumBottomBlobs() const { return -1; }
 9  /**
10   * @brief Returns the minimum number of bottom blobs required by the layer,
11   *        or -1 if no minimum number is required.
12   *
13   * This method should be overridden to return a non-negative value if your
14   * layer expects some minimum number of bottom blobs.
15   */
16  virtual inline int MinBottomBlobs() const { return -1; }
17  /**
18   * @brief Returns the maximum number of bottom blobs required by the layer,
19   *        or -1 if no maximum number is required.
20   *
21   * This method should be overridden to return a non-negative value if your
22   * layer expects some maximum number of bottom blobs.
23   */
24  virtual inline int MaxBottomBlobs() const { return -1; }
25  /**
26   * @brief Returns the exact number of top blobs required by the layer,
27   *        or -1 if no exact number is required.
28   *
29   * This method should be overridden to return a non-negative value if your
30   * layer expects some exact number of top blobs.
31   */
32  virtual inline int ExactNumTopBlobs() const { return -1; }
33  /**
34   * @brief Returns the minimum number of top blobs required by the layer,
35   *        or -1 if no minimum number is required.
36   *
37   * This method should be overridden to return a non-negative value if your
38   * layer expects some minimum number of top blobs.
39   */
40  virtual inline int MinTopBlobs() const { return -1; }
41  /**
42   * @brief Returns the maximum number of top blobs required by the layer,
43   *        or -1 if no maximum number is required.
44   *
45   * This method should be overridden to return a non-negative value if your
46   * layer expects some maximum number of top blobs.
47   */
48  virtual inline int MaxTopBlobs() const { return -1; }
49  /**
50   * @brief Returns true if the layer requires an equal number of bottom and
51   *        top blobs.
52   *
53   * This method should be overridden to return true if your layer expects an
54   * equal number of bottom and top blobs.
55   */
56  virtual inline bool EqualNumBottomTopBlobs() const { return false; }
57

然后具体的layer再override掉需要限制的部分.

然后在layer SetUp的时候,会去 check这些blob的个数

 1
 2
 3/**
 4   * Called by the parent Layer's SetUp to check that the number of bottom
 5   * and top Blobs provided as input match the expected numbers specified by
 6   * the {ExactNum,Min,Max}{Bottom,Top}Blobs() functions.
 7   */
 8  virtual void CheckBlobCounts(const vector<Blob<Dtype>*>& bottom,
 9                               const vector<Blob<Dtype>*>& top) {
10    if (ExactNumBottomBlobs() >= 0) {
11      CHECK_EQ(ExactNumBottomBlobs(), bottom.size())
12          << type() << " Layer takes " << ExactNumBottomBlobs()
13          << " bottom blob(s) as input.";
14    }
15    if (MinBottomBlobs() >= 0) {
16      CHECK_LE(MinBottomBlobs(), bottom.size())
17          << type() << " Layer takes at least " << MinBottomBlobs()
18          << " bottom blob(s) as input.";
19    }
20    if (MaxBottomBlobs() >= 0) {
21      CHECK_GE(MaxBottomBlobs(), bottom.size())
22          << type() << " Layer takes at most " << MaxBottomBlobs()
23          << " bottom blob(s) as input.";
24    }
25    if (ExactNumTopBlobs() >= 0) {
26      CHECK_EQ(ExactNumTopBlobs(), top.size())
27          << type() << " Layer produces " << ExactNumTopBlobs()
28          << " top blob(s) as output.";
29    }
30    if (MinTopBlobs() >= 0) {
31      CHECK_LE(MinTopBlobs(), top.size())
32          << type() << " Layer produces at least " << MinTopBlobs()
33          << " top blob(s) as output.";
34    }
35    if (MaxTopBlobs() >= 0) {
36      CHECK_GE(MaxTopBlobs(), top.size())
37          << type() << " Layer produces at most " << MaxTopBlobs()
38          << " top blob(s) as output.";
39    }
40    if (EqualNumBottomTopBlobs()) {
41      CHECK_EQ(bottom.size(), top.size())
42          << type() << " Layer produces one top blob as output for each "
43          << "bottom blob input.";
44    }
45  }
46

然后还有个问题,就是如果有多个blob,怎么规定顺序呢? 目前来看,是没有什么办法强制规定的,这部分主要取决于layer实现作者的意愿. 好在这种不同blob的含义不同的layer不是特别多..

layer factory 介绍

~~等待补充~~

layor factory 可以用来registry layers.

1  typedef shared_ptr<Layer<Dtype> > (*Creator)(const LayerParameter&);
2  typedef std::map<string, Creator> CreatorRegistry;

我们可以看到LayerRegistry class template 定义了两个类型一个是函数指针Creator,类型为　

1 shared_ptr<Layer<Dtype> >　(const LayerParameter&）;

另一个是CreatorRegistry，建立起了某种映射。

下面我们看到成员函数Registry

1  static CreatorRegistry& Registry() {
2    static CreatorRegistry* g_registry_ = new CreatorRegistry();
3    return *g_registry_;
4  }
5

这里用到了单例模式(Singleton),使得整个class只有唯一的一个CreatorRegistry实例

单例模式可以参考这里

接下来我们看到成员函数AddCreator

1  // Adds a creator.
2  static void AddCreator(const string& type, Creator creator) {
3    CreatorRegistry& registry = Registry();
4    // layer type需要在 CreatorRegistry 表中唯一
5    CHECK_EQ(registry.count(type), 0)
6        << "Layer type " << type << " already registered.";
7    registry[type] = creator;
8  }

此时我们知道，CreatorRegistry的这个table是用来存layer type到相应layer的creator的映射关系的。

接下来我们看到成员函数CreateLayer，见注释

 1  // Get a layer using a LayerParameter.
 2  static shared_ptr<Layer<Dtype> > CreateLayer(const LayerParameter& param) {
 3    if (Caffe::root_solver()) {
 4      LOG(INFO) << "Creating layer " << param.name();
 5    }
 6    const string& type = param.type();
 7    CreatorRegistry& registry = Registry();
 8    CHECK_EQ(registry.count(type), 1) << "Unknown layer type: " << type
 9        << " (known types: " << LayerTypeListString() << ")";
10    // registry[type]返回一个creator
11    //  creator是第一个　函数指针，类型为　shared_ptr<Layer<Dtype> >　(const LayerParameter&）
12    // 因此最终的返回值类型为shared_ptr<Layer<Dtype> >,也就是layer的指针。
13    return registry[type](param);
14  }
15

接下来是成员函数LayerTypeList,作用是列出目前注册过的所有layer type的名称。

 1  static vector<string> LayerTypeList() {
 2    CreatorRegistry& registry = Registry();
 3    vector<string> layer_types;
 4    // 　在模板实例化之前，编译器无法知道scope operator（::）后是"static members“还是”type members“
 5    //  默认情况下，scope operator后接的是static merbers
 6    // 　所以这里需要使用typename　关键词，显式告诉编译器，后面是一个type name
 7    for (typename CreatorRegistry::iterator iter = registry.begin();
 8         iter != registry.end(); ++iter) {
 9      layer_types.push_back(iter->first);
10    }
11    return layer_types;
12  }
13

值得注意的是此处typename　关键词的使用，原因见注释。

最后可以看到两个宏定义

 1
 2#define REGISTER_LAYER_CREATOR(type, creator)                                  \
 3  static LayerRegisterer<float> g_creator_f_##type(#type, creator<float>);     \
 4  static LayerRegisterer<double> g_creator_d_##type(#type, creator<double>)    \
 5
 6#define REGISTER_LAYER_CLASS(type)                                             \
 7  template <typename Dtype>                                                    \
 8  shared_ptr<Layer<Dtype> > Creator_##type##Layer(const LayerParameter& param) \
 9  {                                                                            \
10    return shared_ptr<Layer<Dtype> >(new type##Layer<Dtype>(param));           \
11  }                                                                            \
12  REGISTER_LAYER_CREATOR(type, Creator_##type##Layer)
13

对应了两种register a layer 的方式

一种是可以直接通过layer的constructor来创建，另一种是通过一个其他的creator函数来创建。

从这两个宏定义中可以看出，REGISTER_LAYER_CREATOR　是真正做工作的部分。　REGISTER_LAYER_CLASS　可以看做没有提供creator的特殊情况，此时先通过layer的constructor来定义一个creator,再去调用REGISTER_LAYER_CREATOR

可能值得一提的是宏定义中## 符号，称为 macro operator 作用是将两个token，合成一个token

1<token> ## <token>

我们观察layer_factory.cpp中，发现使用其他creator来创建layer的一种情况是，某个layer可能有cudnn对应的实现。要根据是否有use_cudnn的编译选项，来返回一个cudnn版本的layer还是普通版本的layer.

比如下面这个conv layer

 1
 2// Get convolution layer according to engine.
 3template <typename Dtype>
 4shared_ptr<Layer<Dtype> > GetConvolutionLayer(
 5    const LayerParameter& param) {
 6  ConvolutionParameter conv_param = param.convolution_param();
 7  ConvolutionParameter_Engine engine = conv_param.engine();
 8#ifdef USE_CUDNN
 9  bool use_dilation = false;
10  for (int i = 0; i < conv_param.dilation_size(); ++i) {
11    if (conv_param.dilation(i) > 1) {
12      use_dilation = true;
13    }
14  }
15#endif
16  if (engine == ConvolutionParameter_Engine_DEFAULT) {
17    engine = ConvolutionParameter_Engine_CAFFE;
18#ifdef USE_CUDNN
19    if (!use_dilation) {
20      engine = ConvolutionParameter_Engine_CUDNN;
21    }
22#endif
23  }
24  if (engine == ConvolutionParameter_Engine_CAFFE) {
25    return shared_ptr<Layer<Dtype> >(new ConvolutionLayer<Dtype>(param));
26#ifdef USE_CUDNN
27  } else if (engine == ConvolutionParameter_Engine_CUDNN) {
28    if (use_dilation) {
29      LOG(FATAL) << "CuDNN doesn't support the dilated convolution at Layer "
30                 << param.name();
31    }
32    return shared_ptr<Layer<Dtype> >(new CuDNNConvolutionLayer<Dtype>(param));
33#endif
34  } else {
35    LOG(FATAL) << "Layer " << param.name() << " has unknown engine.";
36    throw;  // Avoids missing return warning
37  }
38}
39
40REGISTER_LAYER_CREATOR(Convolution, GetConvolutionLayer);
